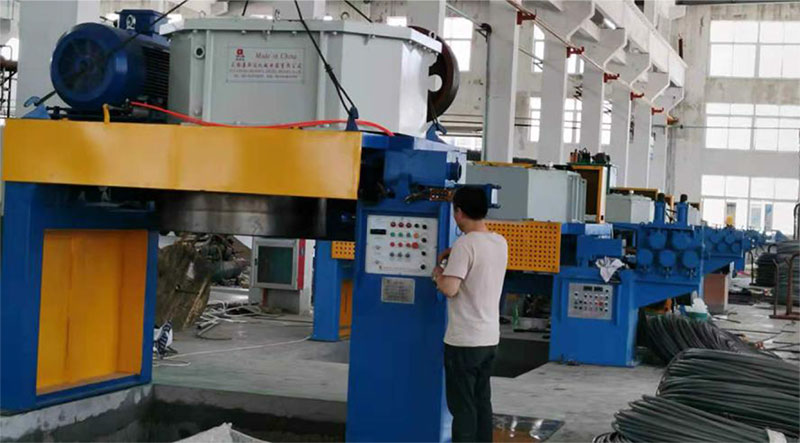

Inverted Vertical Wire Drawing Machine

All inverted vertical type wire drawing machine that are manufactured by our company after improving break through the traditional design concept. It gets to top level now. You wont feel shaking if you touch machine when running.Only we can do it. So it is our most advantage. It has a variety of models, can drawing the high,middle,low carbon steel wire and non-ferrous metal wire which diameter is under ? 42 mm. and It can realize heavy coil unloading wire. So it Is mainly suitable for standard cold heading, automobile and motorcycle industry, the high strength steel wire and cable enterprises. Features: the transmission system adopts first level of strong narrow v-belt combined with hardened reducer;Takeup heavy wire coils; Drum, mould box circulating water cooling system (for high carbon steel wire);Pneumatic pressure wheel;Offline plate is active and the coil diameter can be adjusted; Ac frequency conversion speed regulation, stable drawing, high degree automation, can operate more than one machine with one person, the machine is easy to operate, safe and reliable, energy saving 10-30%.

機臺主要技術(shù)參數(shù)

卷筒直徑 Capstan diameter	(mm)	Φ1400	Φ1200	Φ1000	Φ800	Φ600
拉拔道次 Drawing passes		1	1	1	1	1
進線強度 Inlet line intensity	(mPa)	≤500	≤500	≤500	≤500	≤500
******進線直徑 Max.Inlet size diameter	(mm)	42	30	20	12	8.0
總壓縮率 Gross compression rate	(%)	≤25	≤25	≤25	≤25	≤25
拉拔速度（m/m in) Drawing speed		25 - 35	30-40	40 - 50	50 - 70	60- 80
電機功率 Motor power	(Kw)	110-132	75 - 90	37 - 75	22 - 37	15-22
拖動方式 Drag way		交流變頻
備注 Note		卷筒直徑可根據(jù)用戶要求定制，高碳盤條可Φ23mm進線
